COMMERCIAL

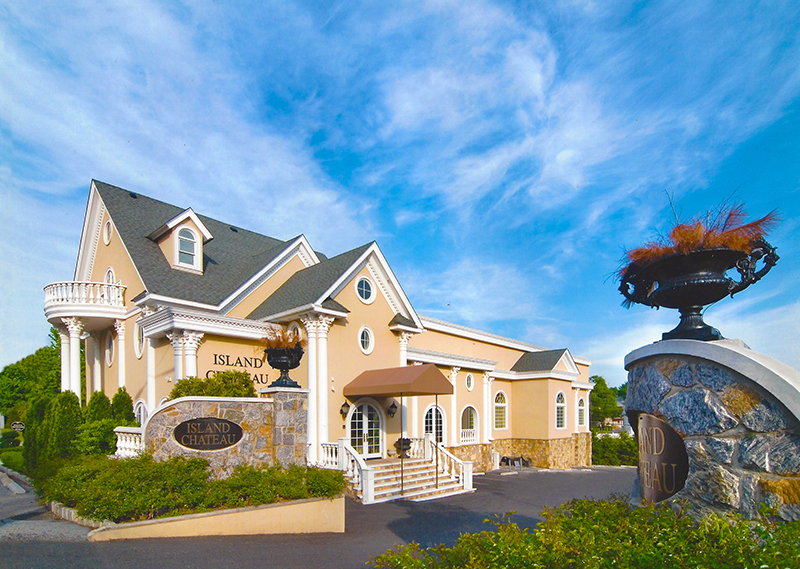

ISLAND CHATEAU
Catering Facility
Staten Island, NY
ISLAND CHATEAU

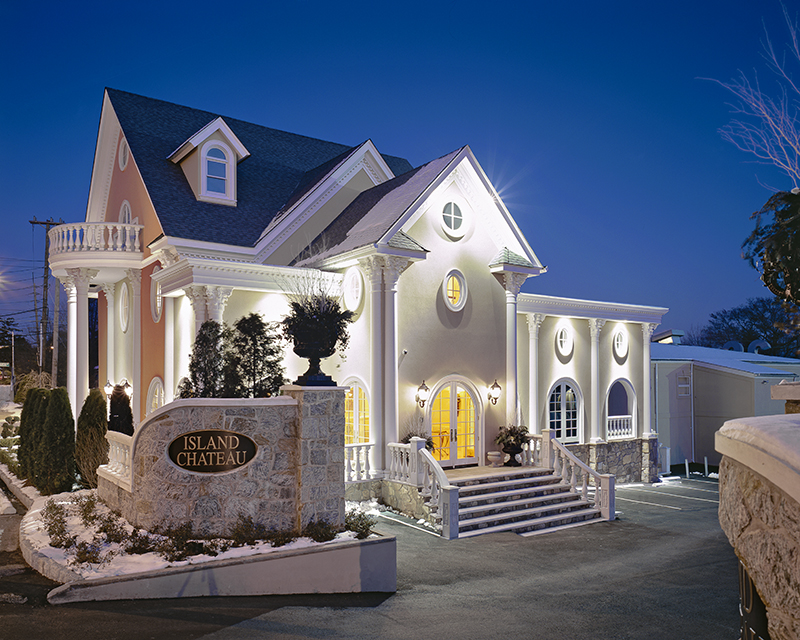

Night View
|
Island Chateau is a second generation Catering Facility on Staten Island. The family had established their excellent reputation by concentrating on only one function at a time, giving their undivided attention to the one party. The younger generation was looking to update the facility and generate excitement. The facility was updated in two phases; the entrance first and then the main hall. |

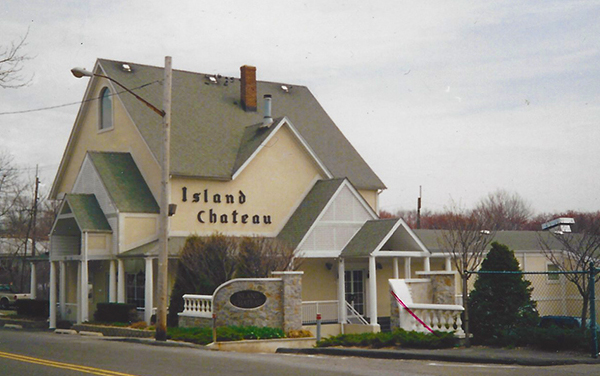

ORIGINAL CONDITIONS |

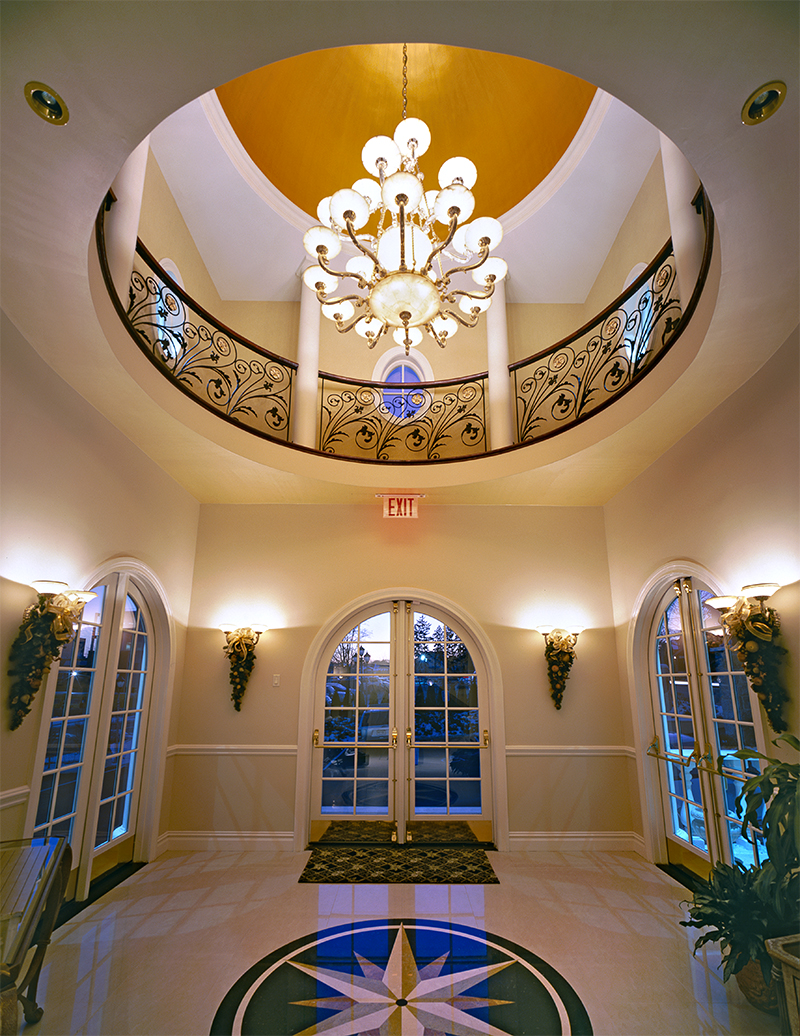

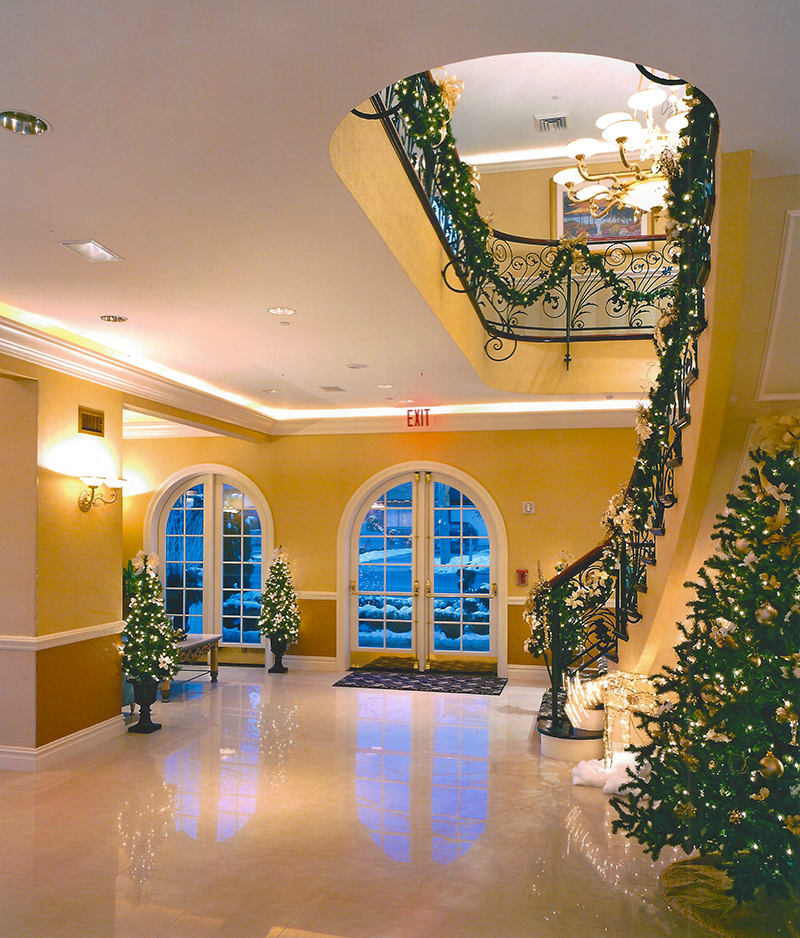

Dramatic Three Story Entrance
with Gold Leaf Dome and Chandelier

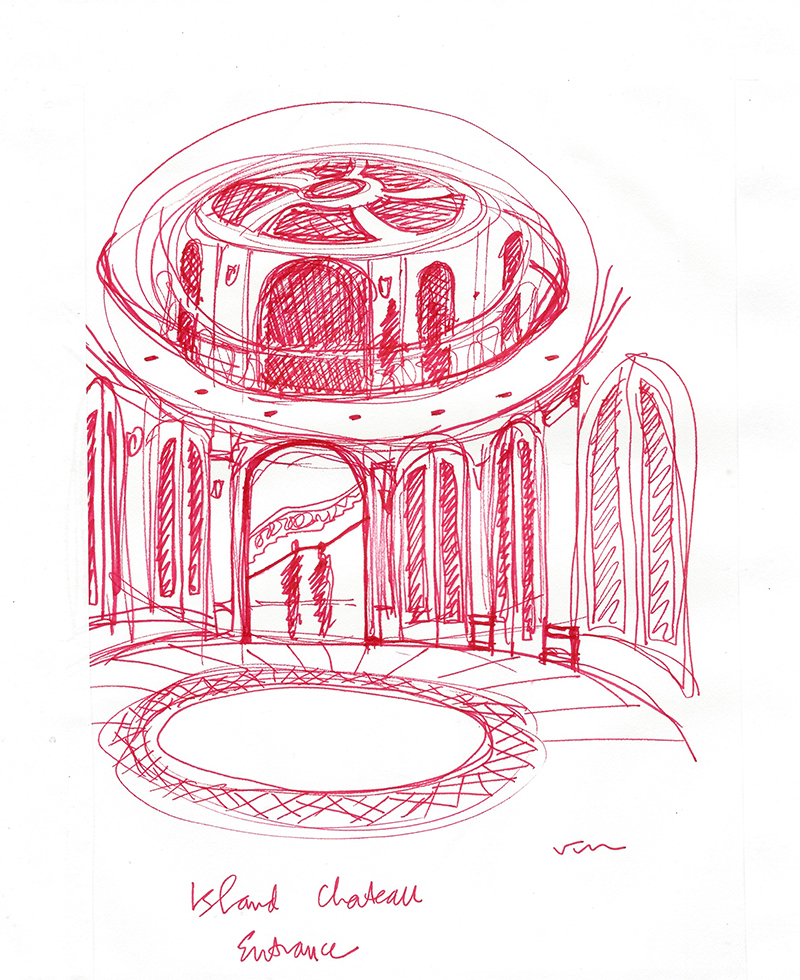

Original Sketch for Entrance
Lobby
Rendering of Proposed Main Hall
Main Hall As built
HEADQUARTERS for
SEAMEN’S SOCIETY FOR
CHILDREN AND FAMILIES
St. George
Staten Island, NY

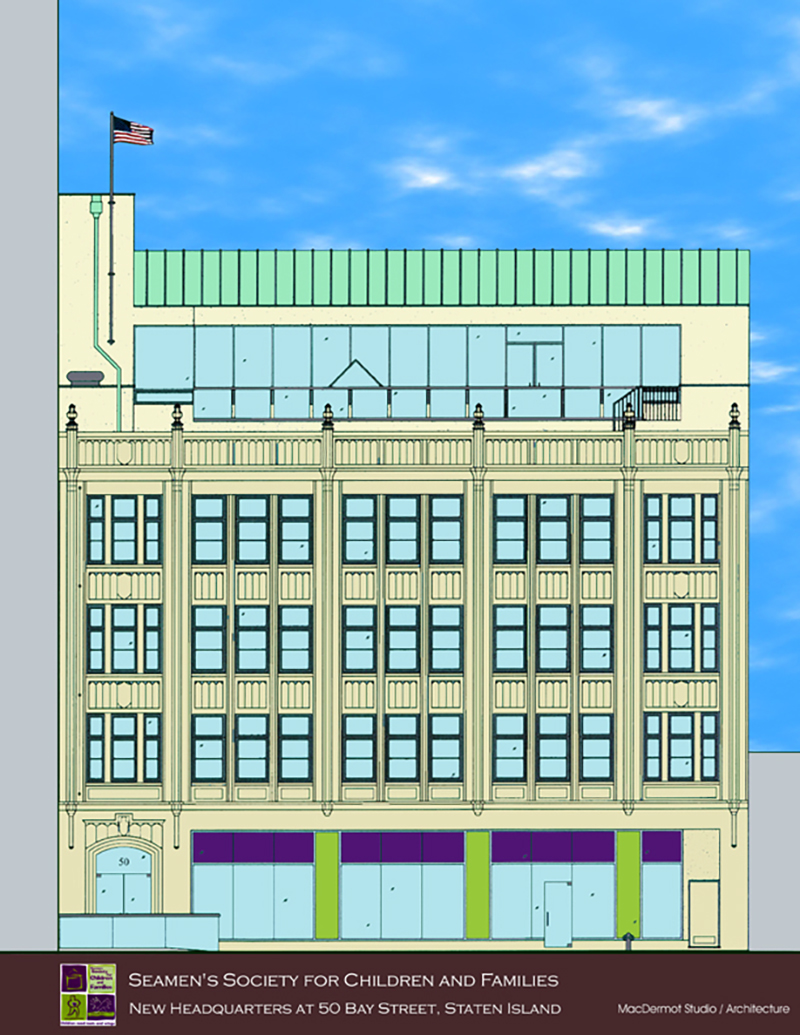

Front Elevation
SEAMEN’S SOCIETY FOR
CHILDREN AND FAMILIES
St. George
Staten Island, NY

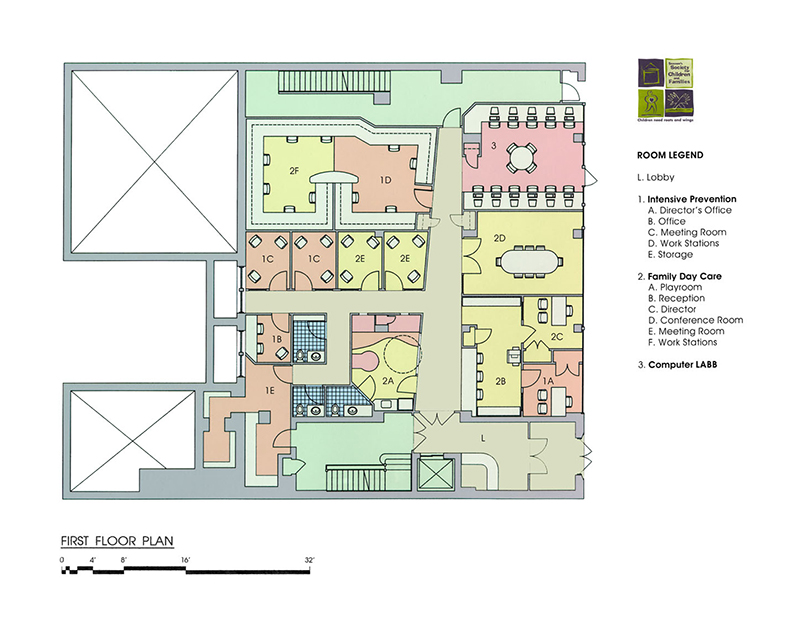

FIRST FLOOR PLAN
Colors indicate different departments

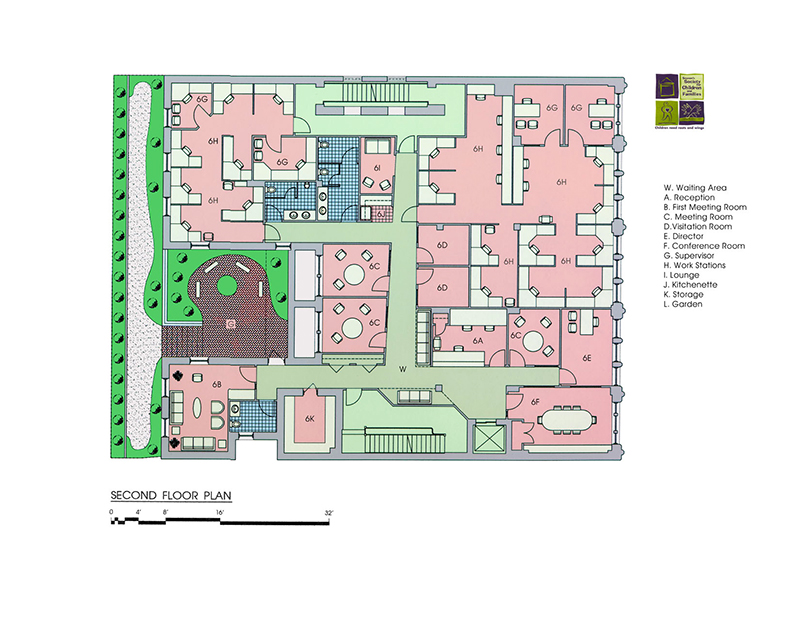

Second Floor Plan
Colors indicate
different departments

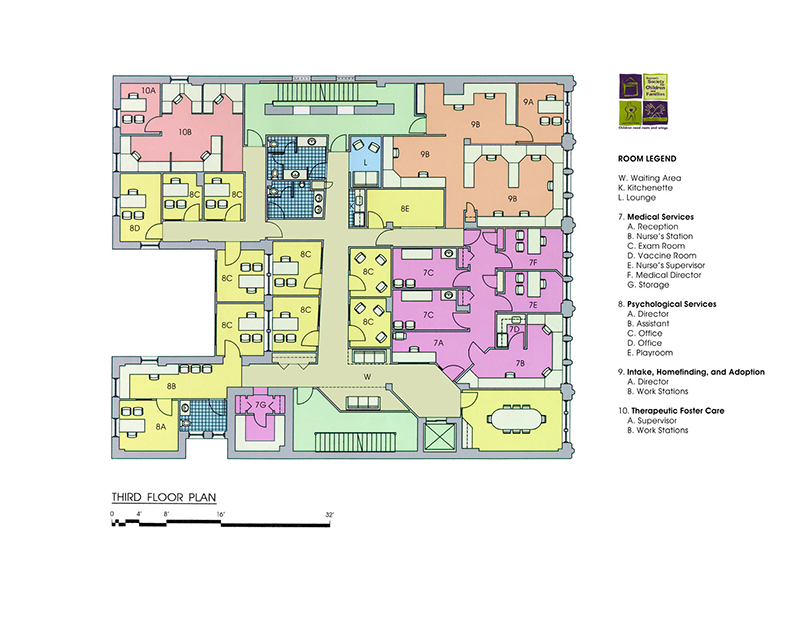

Third Floor Plan
Colors indicate different departments

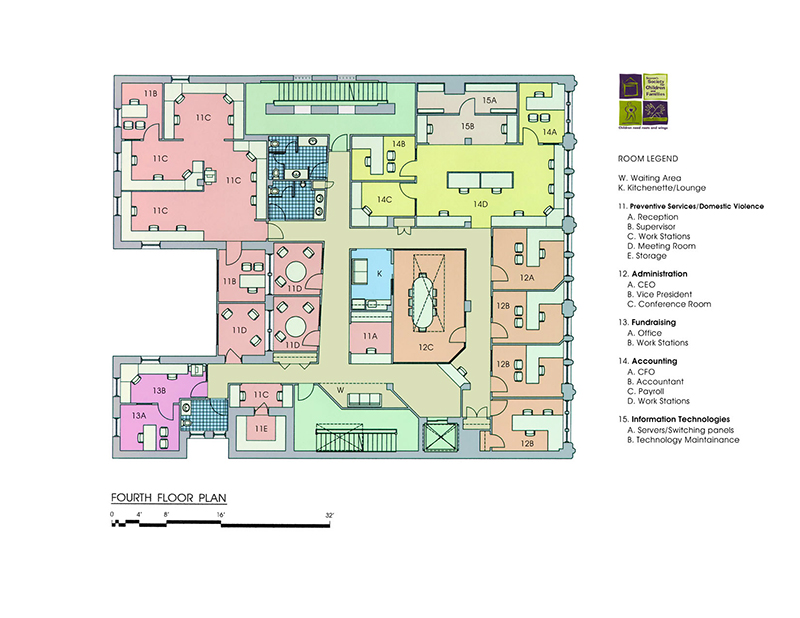

Fourth Floor Plan
Colors indicate different departments

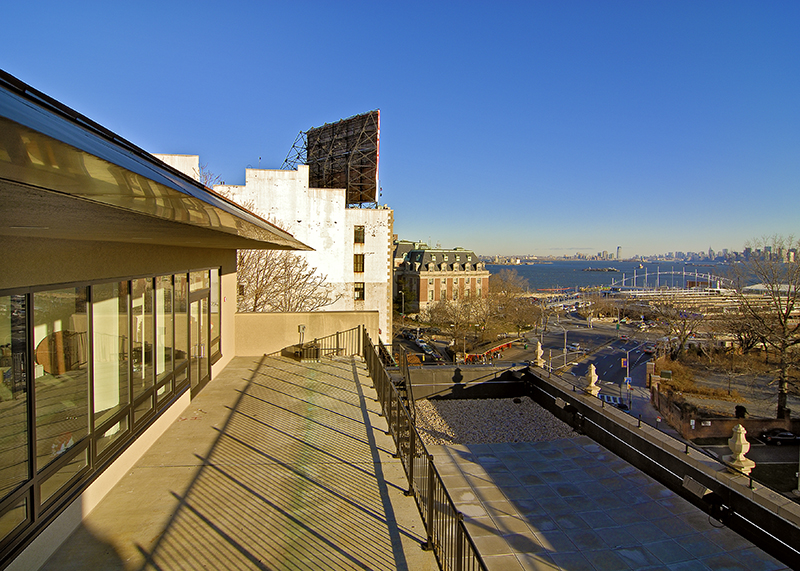

Day View
Fourth Floor Exterior Deck
With Cantilevered Roof

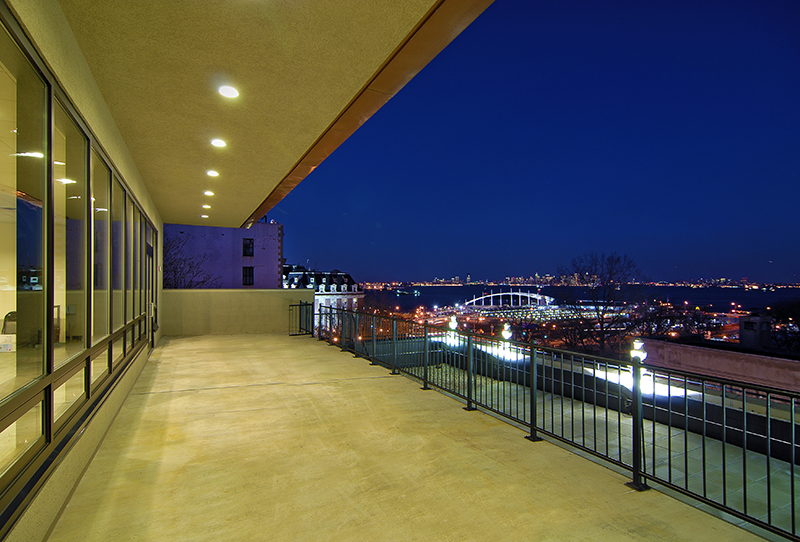

Night View
Fourth Floor Exterior Deck
With Cantilevered Roof

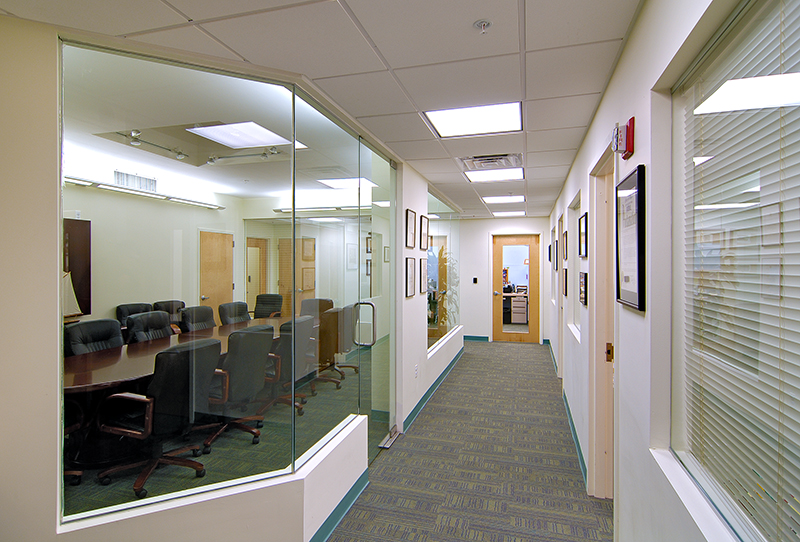

Hallway View of
Conference Room
Conference Room
Staff Lounge
and Kitchen
Computer Work Room
